- VERISATILE SOLUTION FOR INDIVIDUAL REQUIREMENTS
VEN SPRAY ADVANCED – THE FLEXIBLE COATING MACHINE FOR MEDIUM-SIZED COMPANIES
COATING MACHINE FOR A WIDE VARIETY OF WORKPIECES
EXTREMELY FLEXIBLE AND VARIABLY CONFIGURABLE FOR YOUR APPLICATIONS
With the future-oriented VEN SPRAY ADVANCED coating machine, Venjakob is focusing on the flexible coating of a wide variety of workpieces made from different materials.
This innovative coating machine is designed for medium-sized craft and industrial businesses in numerous sectors that process large quantities in paint booths and want to automate or optimize this process. The VEN SPRAY ADVANCED is designed with a wide range of variants for this purpose. The large linear axis with up to 12 individually switchable spray guns guarantees maximum quality at all times, regardless of the workpiece or its material.
Thanks to the intuitive user interface on the swivel touch display, operating the coating machine is child’s play. The VEN SPRAY ADVANCED also includes a spray gun control system and part recognition for automatic optimization of the spray guns according to the width and position of the workpieces on the conveyor belt. As the control cabinet is already integrated in the VEN SPRAY ADVANCED, the coating machine can be commissioned quickly and effectively on site.
For medium-sized applications, the VEN SPRAY ADVANCED is an economical and solid solution with a consistently fast feed speed of 7 m/min and outstanding surface quality.
The VEN SPRAY ADVANCED is also state of the art in terms of energy efficiency and design and is comparable with coating machines for larger, industrial applications. The large spray booth is built as a stable profile element construction and is very easy to see through large glass elements. Optionally, one or two highly efficient LED lights illuminate the entire spray area.
To ensure high coating quality – for a wide variety of workpieces and their materials – several spray programs are preset and a separate recipe management system can also be set up. In addition, the gun speed is infinitely variable from 1 – 2.5 m/sec.
The cleaning effort of the coating machine is particularly low with the paper belt system, especially recommended for many color or coating changes. The VEN SPRAY ADVANCED can optionally be equipped with a paper belt conveyor and / or a belt conveyor with paint recovery system. Depending on the application, the paint is discharged as an oscillating squeegee or with an additional belt conveyor with V-scraper.

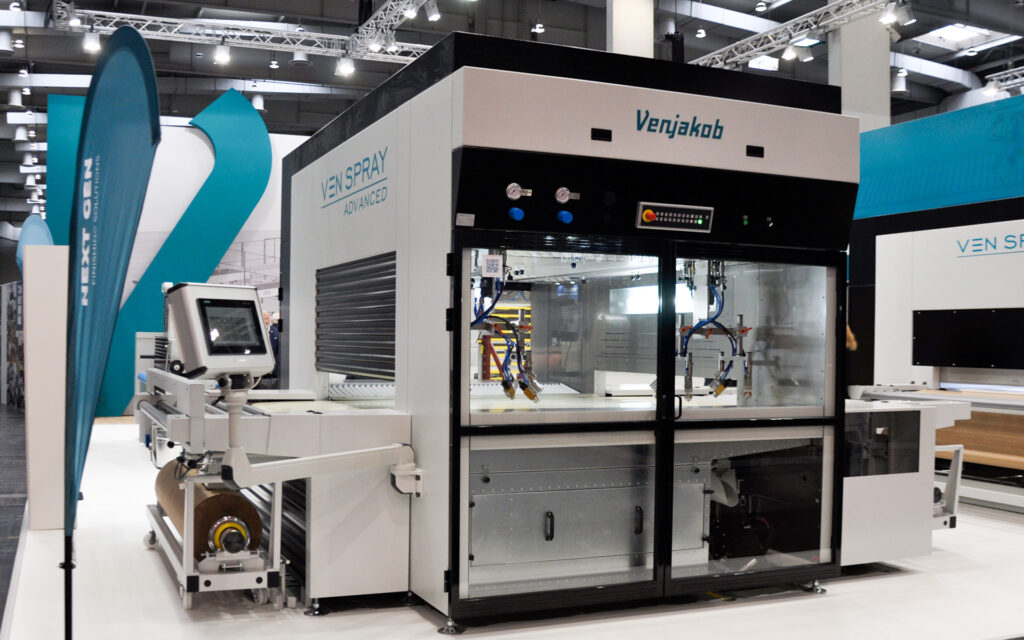

GENERAL VIEW OF THE COATING MACHINE VEN SPRAY ADVANCED

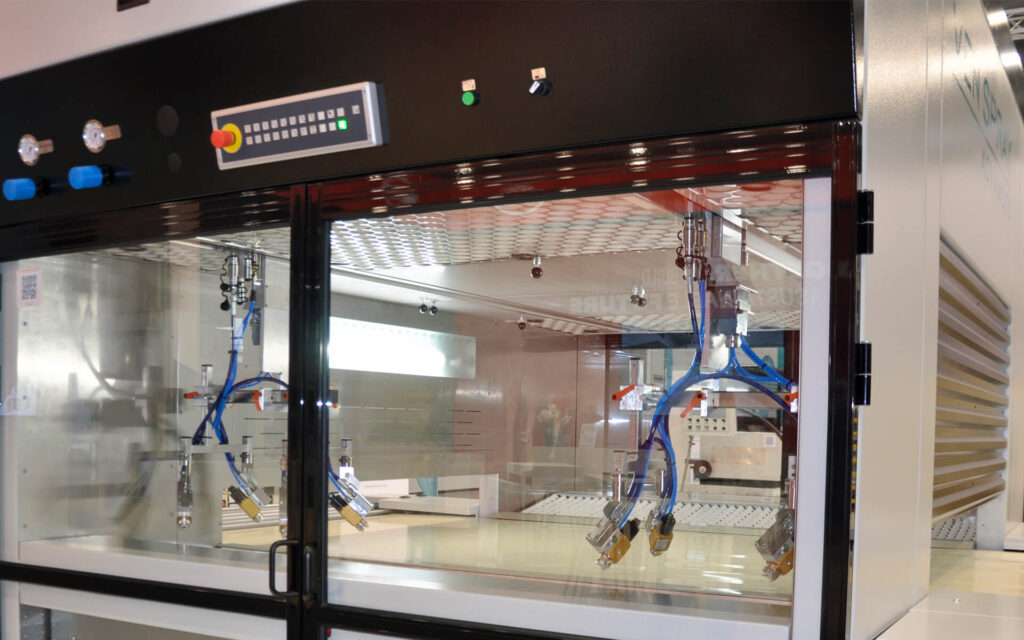

VEN SPRAY ADVANCED COATING PISTOLS

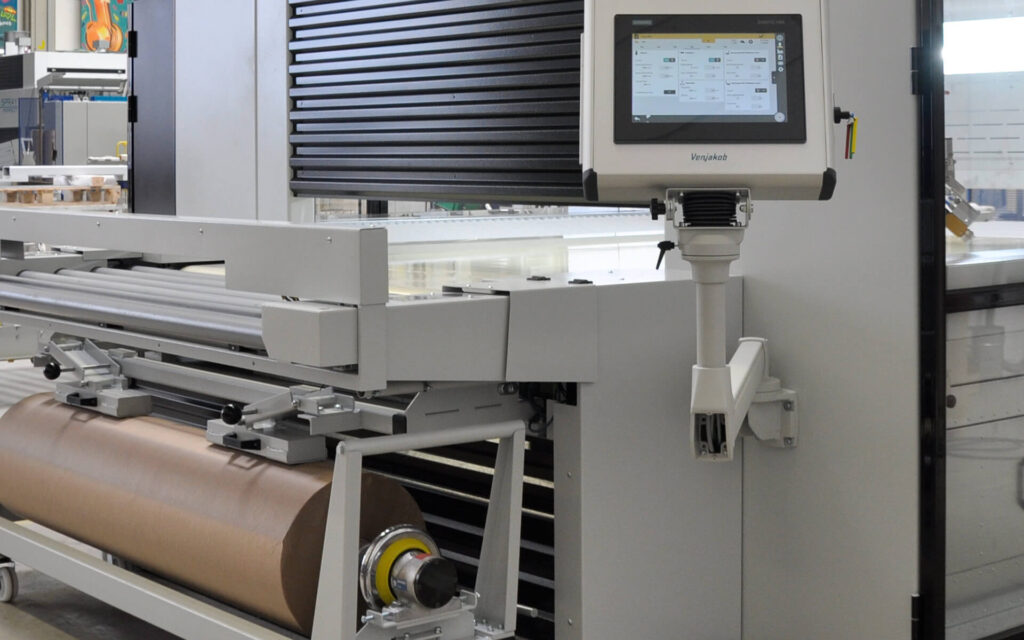

VEN SPRAY ADVANCED Infeed and Touch Panel

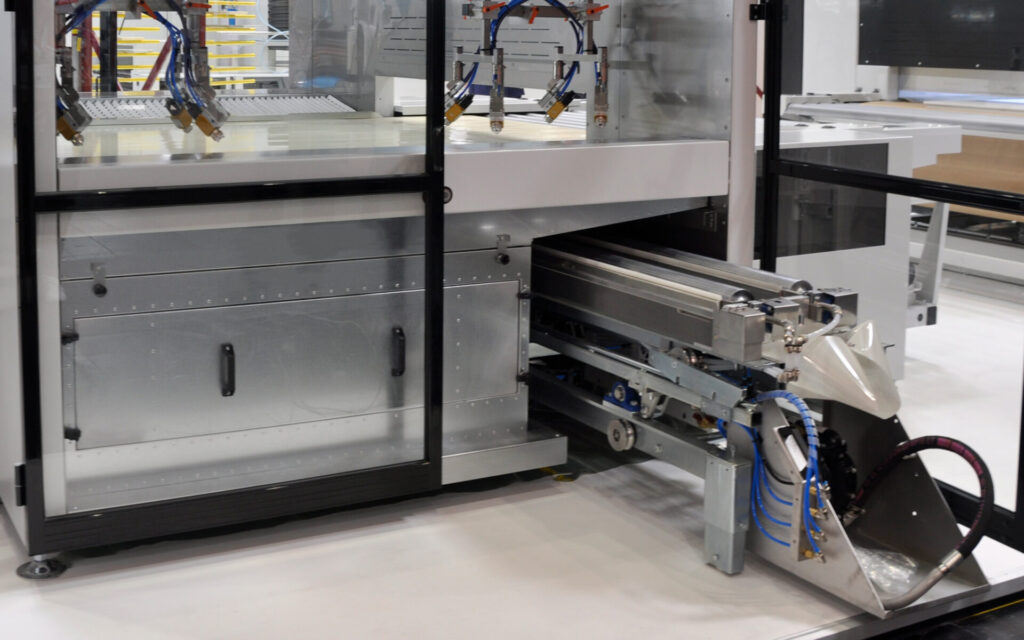

VEN SPRAY ADVANCED Washing System
Suitable for the following applications
- Wood / furniture
- Building materials / construction elements
- Automotive
- Aerospace
- Glass
- Plastics
- Metal
- Other manufacturing industry
NUMEROUS APPLICATIONS OF THE COATING MACHINE
The VEN SPRAY ADVANCED is suitable for workpieces made of wood, glass, plastic and metal. At the same time, the coating machine is designed for shapes with different geometries. Here are some examples of workpieces:
- Furniture
- Doors and window frames
- Stair treads / banisters
- Wall and ceiling cladding
- Floor elements
- Decorative glass (interior cladding)
- Facades elements
- Building glass
- Solar panels
- Special applications
DIE VEN SPRAY ADVANCED – EXTREMELY FLEXIBLE AND VARIABLY CONFIGURABLE
- Suitable for large quantities
- 12 individually switchable spray guns
- Fast color changes in a continuous process - reduced set-up times
- Very high interior for reduced misting in the spray area
- Designed for a continuous feed speed of 7 m/min
- Integrated control cabinet
- Attractive entry-level machine with the option of modular expansion at any time
KEY DATA OF THE VEN SPRAY ADVANCED COATING MACHINE
- Format 5,120 L x 3,990 / 4,640 W x 2,790 D mm (stand-alone solution)
- Working width 1,300 / 1,600 mm
- Supply air max. 10,000 m3/h
- Exhaust air max. 10,000 m3/h
- Compressed air consumption with 1 pump max. 1,500 Nl/min
- Workpiece format min. 250 x 50 x 1 mm
- Workpiece format max. ∞ x 1,300 x 90 mm
- Spray booth with large glass elements
- Large linear axis for up to 12 spray guns
- Spray gun speed infinitely variable from 1-2.5 m/sec.
- Further options: Air baffles above the extraction boxes, humidifier guns for paint recovery, central lubrication pump, glass detection, etc.
With the VEN SPRAY ADVANCED, Venjakob offers medium-sized companies an extremely flexible coating machine that meets the requirements of different workpieces made of wood, metal, plastic or glass.
Get closer to optimizing or automating your coating process! Talk to us about your individual application!
